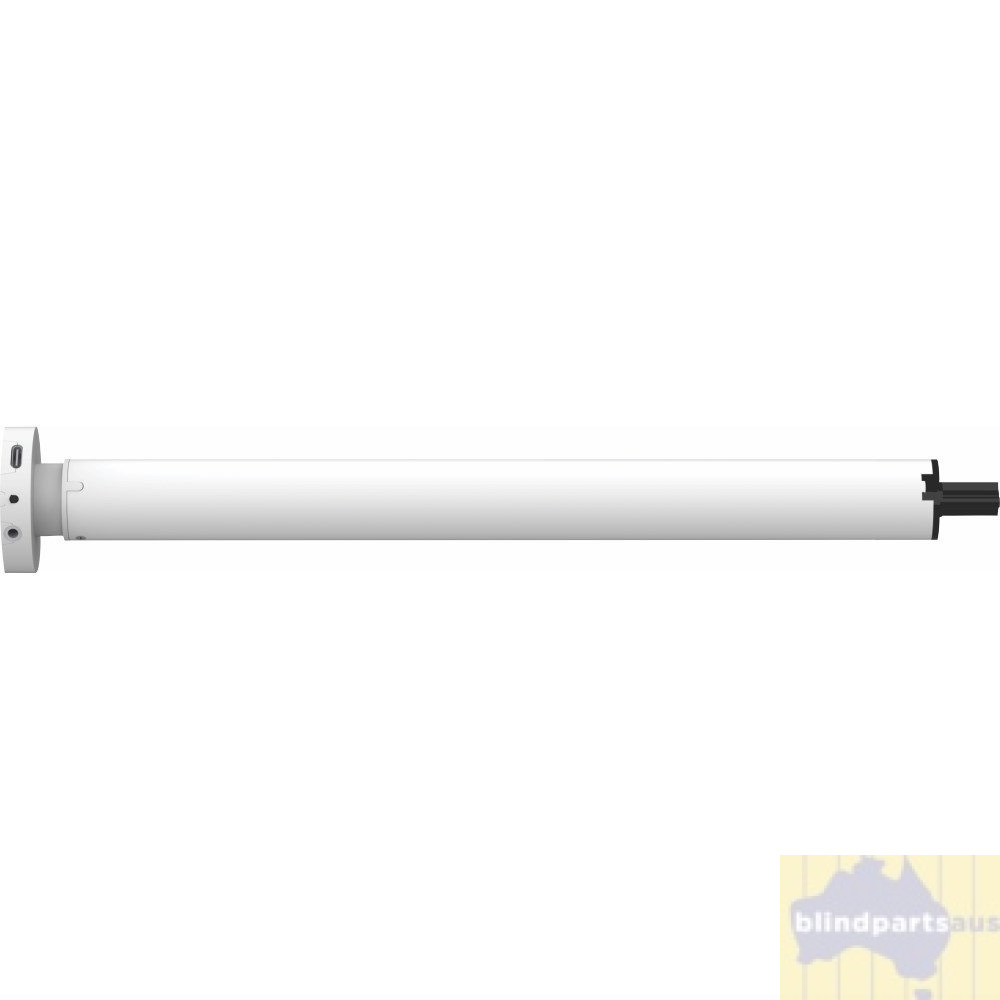

Alpha motor

Description

• Short motor
• 5 volt USB-C charging
• Ultra quiet operation
• Adjustable speed
• Patented coreless technology
• No aerials
• NEO app control

The fittings for these motors will allow it to be used with a range of tube sizes from 30-50mm in diameter. All of the charging intelligence is taken care of inside the motor, not by a 3rd party charger. This eliminates many of the issues experienced by other brands of DC motors. The motor will indicate both when charging is required, and completed. The charger plugs directly into the motor head so there is no need for an unsightly charging cable.

RATED TORQUE (1Nm) 2
OUTPUT SPEED (rpm) 25/30/35
ALDC CHARGER 5V/1A
NOMINAL VOLTAGE (V) 11.1
SPEED ADJUSTABLE yes
RUNNING TIME (Mins) ∞
PROTECTION INDEX (IP) 20
TOTAL LENGTH (mm) 525
MAXIMUM TURNS ∞
NET WEIGHT (Kg) 0.54
MAXIMUM LIFTING CAPACITY 3m x 3m
INCLUDED C&D A2310
